YL288 1/2 '' To 3/4 '' Threaded forged brass ball valve AL Long Handle Nickel Plating

• Quick Details

  Place of Origin:

  Zhejiang, China

  Brand Name:

  Yalong

  Model Number:

  YL288

  Application:

  General

  Temperature of Media:

  Normal Temperature

  Power:

  manual

  Media:

  Water

  Port Size:

  1/2"-3/4"

  Structure:

  BALL

  Connection End:

  Female * Female Thread

  Working Pressure:

  PN25

  Channel:

  Straight Through Type

  Female thread connections comply with:

  ISO 228 ( BS2779)

  Test:

  100% CNAS Laboratory test

  Certificate:

  CE

  Handle color:

  Black

  Body material:

  Brass HPb57-3

​​

• Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Iron Handle Plated with chrome, the surface is coated against corrosion, the coating is thickened, comfortable using.

O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

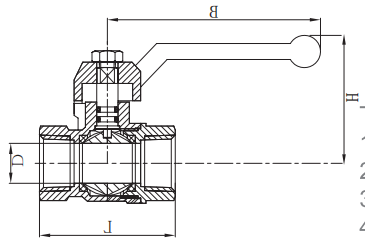

• Technical Drawing

1. Female x Female brass threaded ball valves with AL handle.
2. The thread(NPT or BSP), color of handle, materials, etc. can be customized.

Materials of Parts
