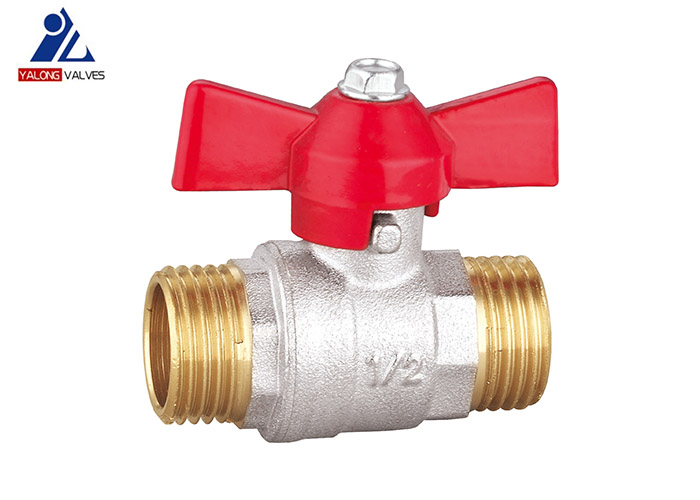

YL222 CW617N M X M Threaded Brass T Handle Ball Valve Nickel Plated
Brass Butterfly Valve
Quick Details
- Place of Origin:
Zhejiang, China
- Brand Name:
YALONG
- Application:
Commercial Kitchen
- Temperature of Media:
Normal Temperature
- Power:
manual
- Media:
Water
- Port Size:
1/2"-3/4"
- Structure:
BALL
- Product name:
Brass ball valve
- Connection End:
Male X Male Thread
- Working Pressure:
PN20
- Channel:
Straight Through Type
- Female thread connections comply with:
ISO 228 ( BS2779)
- Test:
100% test
- Certificate:
CE
- Handle color:
Red color
- Body material:
Brass
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made
by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made
by special high precision CNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness,
long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity
and wear resistance, is not easy aging.
Handle: Iron Handle Chrome Plating, the surface is coated against
corrosion, the coating is thickened, comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction
coefficient, long service life and not easy to leak.
- YL222 CW617N M X M Threaded Brass T Handle Ball Valve Nickel Plated Brass
Butterfly Valve
- The thread(NPT or BSP or G), color of handle, materials, etc. can
be customized.
| DN | SIZE | D | H | L | B |
| 15 | 1/2'' | φ12 | 34.5 | 50.5 | 52 |
| 20 | 3/4'' | φ17 | 38 | 56 | 52 |
Materials of Parts
| No. | Part | Materials |
| 1 | Body | Brass CW617N |
| 2 | Bonnet | Brass CW617N |
| 3 | Ball | Brass CW617N |
| 4 | Seal | PTFE |
| 5 | Stem | Brass CW617N |
| 6 | O ring | NBR |
| 8 | Handle | Aluminum |
| 9 | Nut | Iron |
Reminding: Ball valves in red handle can be only used in water services,
heating and air conditioning plants, and compression air system.
They are not allowed to be used in gas system.
EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang
province. Covering an area of over 35,000 square meters. Yalong has
rich experience in producing various brass valves of all size,
including gate valves, ball valves, stop valves, check valves,
float valves, strainer valve, etc. We regard quality as our
company’s lifeblood and of paramount importance and while increase
investment in producing equipment, and purchase advanced inspection
machine. Not only in the pass but also in the future, we insist the
belief --“Quality first and offer best service”. we keep on
management innovation, technological innovation, Channel Innovation
and service innovation.
Yalong Valve, classical and durable, is worth your trust!l
Welcome customers from all of world to win-win cooperation; join
hands to create a better future!
FAQ
Q1. Can I get a sample for you? how long it will take?
A: Of course. For existing sample, it takes 2-3 days and they are
free. If you want your own designs, it takes 7-10 days, subject to
your designs whether they need new MOLD, etc. Anyway, we will
response fast to your request.
Q3: Does your factory have the design and development capabilities,
we need the customized products?
A: The staffs in our R&D department are well experienced in the
faucet industry, with more than 20 years experience. We can make
customized products especially for you, please kindly contact us
for more details
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
