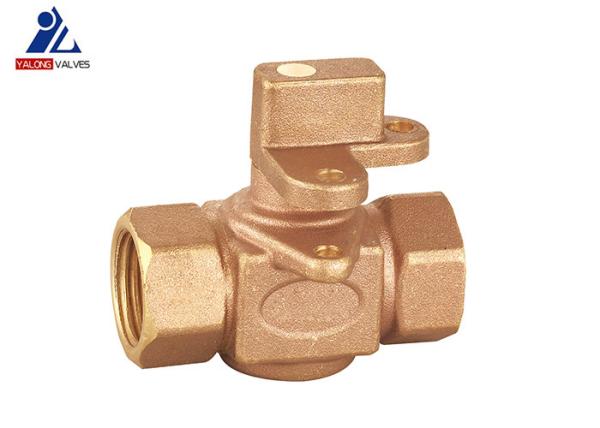

F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

    Buy cheap F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color from wholesalers

    Buy cheap F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color from wholesalers
    • Buy cheap F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color from wholesalers

    F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

    Ask Lasest Price
    Brand Name : YALONG
    Model Number : YL265
    Certification : CE, ISO9001, ISO14001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 20000PCS/DAY
    Delivery Time : 35Days
    • Product Details
    • Company Profile

    F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

    YL265 CW617N 15mm F X F Brass Ball Valve With Lockable Handle Nature Color 20mm Ball Valve


    Description of product:
    Materials: Brass
    Surface: Nature Color
    Connection Thread: Female NPT x Female NPT
    Size: 1/2"~3/4''
    Working Pressure: 1.6MPa
    Working media: Water

    • Details

    ​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Valve Ball: Smooth and wear resisting, with good sealing performance.

    Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

    Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

    Handle: Red AL handle.

    O-ring: NBR , which is made of imported raw material, small friction coefficient, long service life and not easy to leak.


    • Drawing


    • Technical Specification
    1. 15mm F X F Brass Ball Valve With Lockable Handle Nature Color 20mm Ball Valve
    2. The thread, color of handle, materials, etc. can be customized.
    DNSIZEDHLB
    151/2''φ123959.532.5
    203/4''φ18416440

    Materials of Parts

    No.PartMaterials
    1BodyBrass with nickel plated
    2BonnetBrass with nickel plated
    3BallBrass Three-way, chrome plated
    4SealPTFE
    5StemBrass HPb57-3
    6O ringNBR
    7HandleAL

    • Enterprise Introduction

    EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong Valves Company has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

    Yalong Valves company, classical and durable, is worth your trust!l

    Welcome customers from all of world to win-win cooperation; join hands to create a better future!
